一、技術參數
Technical parameters

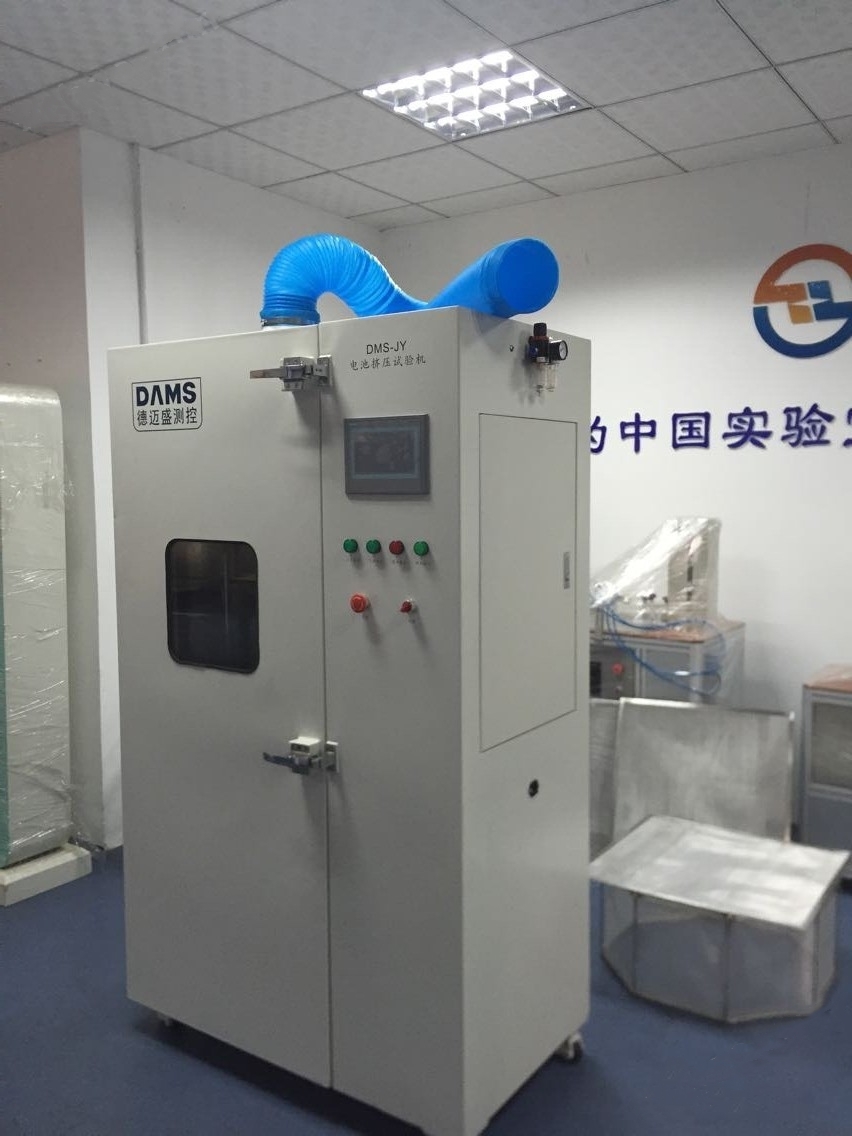

西門子觸摸式電池?cái)D壓試驗機(GB31241-2014,UL1642適用)
Touch Battery extrusion Tester ( Applied to GB31241-2014, UL1642)
型號 Model | DMS-JY |
最大壓力Max. Pressure | 1KN-20KN(可調,可根據客戶要求定制)(Can be customized according to requirements) |
活塞直徑Piston diameter | 32mm |
驅動方式Driving method | 液壓Hydraulic pressure |
單位轉換Unit conversion | Kg/N/Lb |
擠壓行程 Crush range | 0~300MM |
擠壓精度Extrusion accuracy | ±1% |
擠壓保持時間 Extrusion remaining time | 0~99小時99分鐘99秒 |
控制方式 Controlling method | PLC觸摸屏控制系統(7寸觸摸屏)+遠程遙控控制PLC touch screen control system (7-inch touch screen) + remote control |
測試空間 Testing space size | W500xD300xH300 mm |
外形尺寸Dimension | W940xD780xH2020 mm |
可視窗口Viewing window | 390 X 360mm(20mm厚鋼化防爆玻璃+防爆不銹鋼網) |
電源Power supply | AC 380V 50HZ |
功率Power | 2.0KW |
USB接口 USB interface | 帶USB接口,可將測試數據導出 With USB interface, the test data can be exported |
輔助功能 Accessibility | 防爆泄壓裝置、排煙裝置、防爆鏈Explosion-proof pressure relief device, smoke exhaust device, explosion-proof chain |
選購件 Options | 視頻監控系統,溫度、電壓采集系統Video monitoring system, temperature, voltage acquisition system |
